3k Carbon tow

1kg spool

Tairyfil TC35-3K

5000m long

6k Carbon tow

2kg spool

Baowu Fiber

5000m long

Tensile Strength 4900 MPA

Modulus of elasticity in tension 250 Gpa

Linier Density 817 g/km

Elongation at break 1.795%

AT-200Y Sealant Tape delivers consistent and reliable performance for composite manufacturing with epoxy, vinylester or polyester resin systems. Tape width and thickness is optimised for hold-strength and ease of application. It has high tack and will release and clean up easily from metal and composite tool surfaces.

  • Provides a continues airtight seal between the bag and the tool.
  • For use with epoxy, vinyl ester or polyester resins.
  • High tack
  • Easy to use
  • Easy clean up
  • Maximum temperature 204 deg C

Download Data Sheet here

  • T700-N
  • 12k
  • 1kg bags
  • 3 lengths to choose from.

Compatible with all epoxy resins on our site.

6mm chopped fiberglass.

Use chopped glass to increase tensile and compression strength of your resin. This mixture is excellent for adding strength to filled epoxy paste, castings etc. Add to your resin along with our putty additive for small mold backing or in the corners of bigger moulds where your chopped strand mat wont sit down (Apply to your sharp corners before your chopped strand mat to avoid voids).

Provides a continues airtight seal between the bag and the tool.

  • 12mm wide x 15m long x 3mm thick.
  • For use with epoxy, vinyl ester or polyester resins.
  • High tack.
  • Easy to use.
  • Easy clean up.
  • Maximum temperature 100 deg C.

Kinetix H120 1kg Room temp hardener.

Used with Kinetix R118.

Kinetix H120 4.5kg Room temp hardener.

Used with Kinetix R118.

MIRACLE GLOSS NO. 8 2.0 Maximum Mold Release Wax is a costly blend of imported waxes specially formulated to provide the maximum number of releases per application. Especially useful on plugs, new molds, and tooling. MIRACLE GLOSS NO. 8 2.0 Maximum Mold Release Wax is formulated to provide the applicator a very easy to use wipe on and wipe off experience allowing the optimum thickness of wax on the mold surface. After hazing it is extremely easy to wipe off reducing the time required to apply and wipe off compared to other wax release agents. MIRACLE GLOSS NO. 8 2.0 ADVANTAGES: Ease of application and buffing, Creates a durable wax surface, Remains intact for multiple pulls. Formulated to release GRP, FRP, and other composite applications.

Paper cup for mixing resin. Also fits inside the vacuum catchpot to catch excess resin.

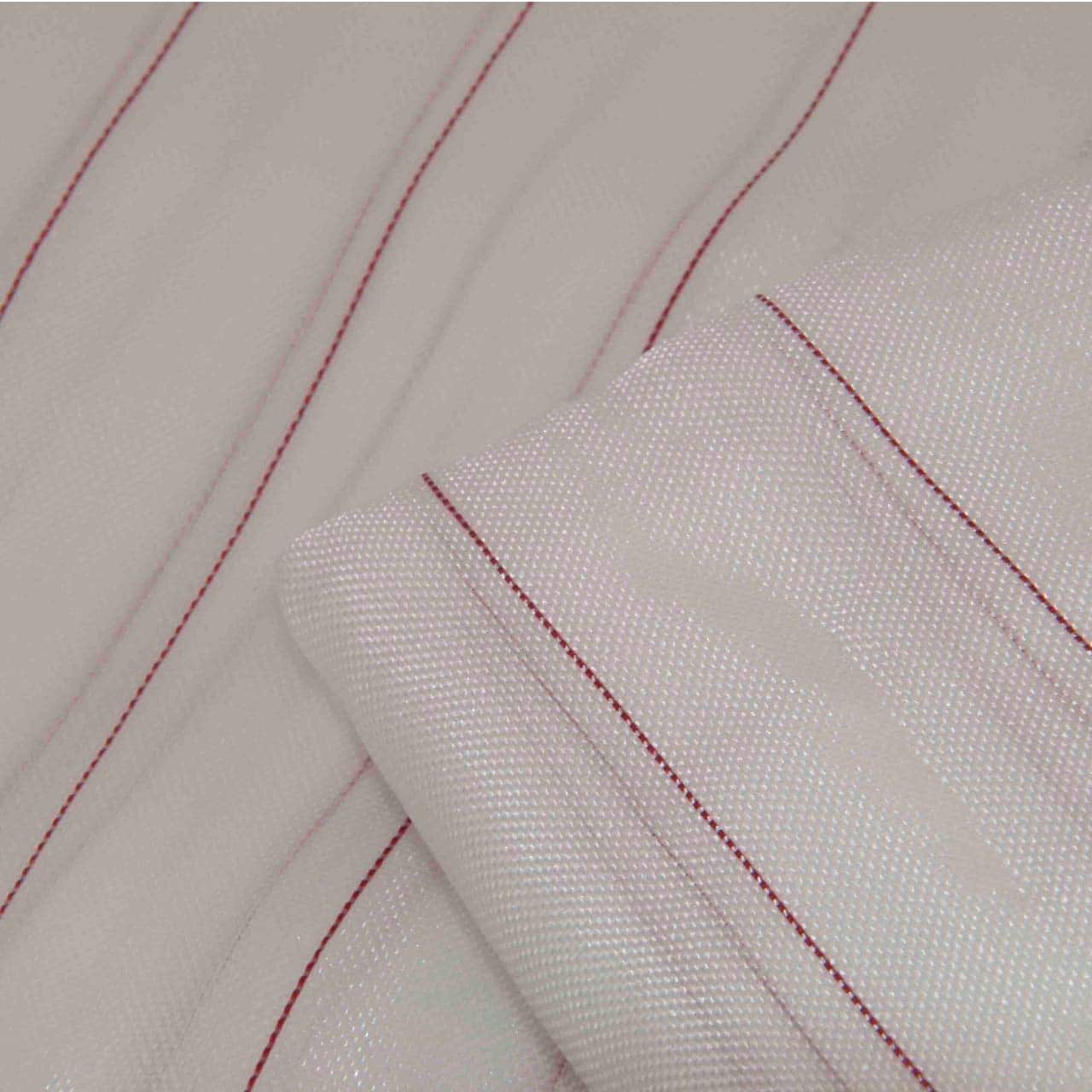

Used in both regular vacuum bagging and resin infusion Techniques, peal ply is the first layer to go down on top of your laminate, this layer is very important and allows the rest of the vacuum consumables to be removed after the laminate has cured. It also leave a perfect surface to bond to once removed.

  • For regular vacuum bagging apply a layer of bleeder fabric over the peel ply
  • For resin infusion apply a layer of infusion mesh over the peel ply
  • 100mm wide
  • 85g/sqM
  • 100m long roll
  • 170 deg C

Used in both regular vacuum bagging and resin infusion Techniques, peal ply is the first layer to go down on top of your laminate, this layer is very important and allows the rest of the vacuum consumables to be removed after the laminate has cured. It also leave a perfect surface to bond to once removed.

  • For regular vacuum bagging apply a layer of bleeder fabric over the peel ply
  • For resin infusion apply a layer of infusion mesh over the peel ply
  • 200mm wide
  • 85g/sqM
  • 100m long roll
  • 170 deg C

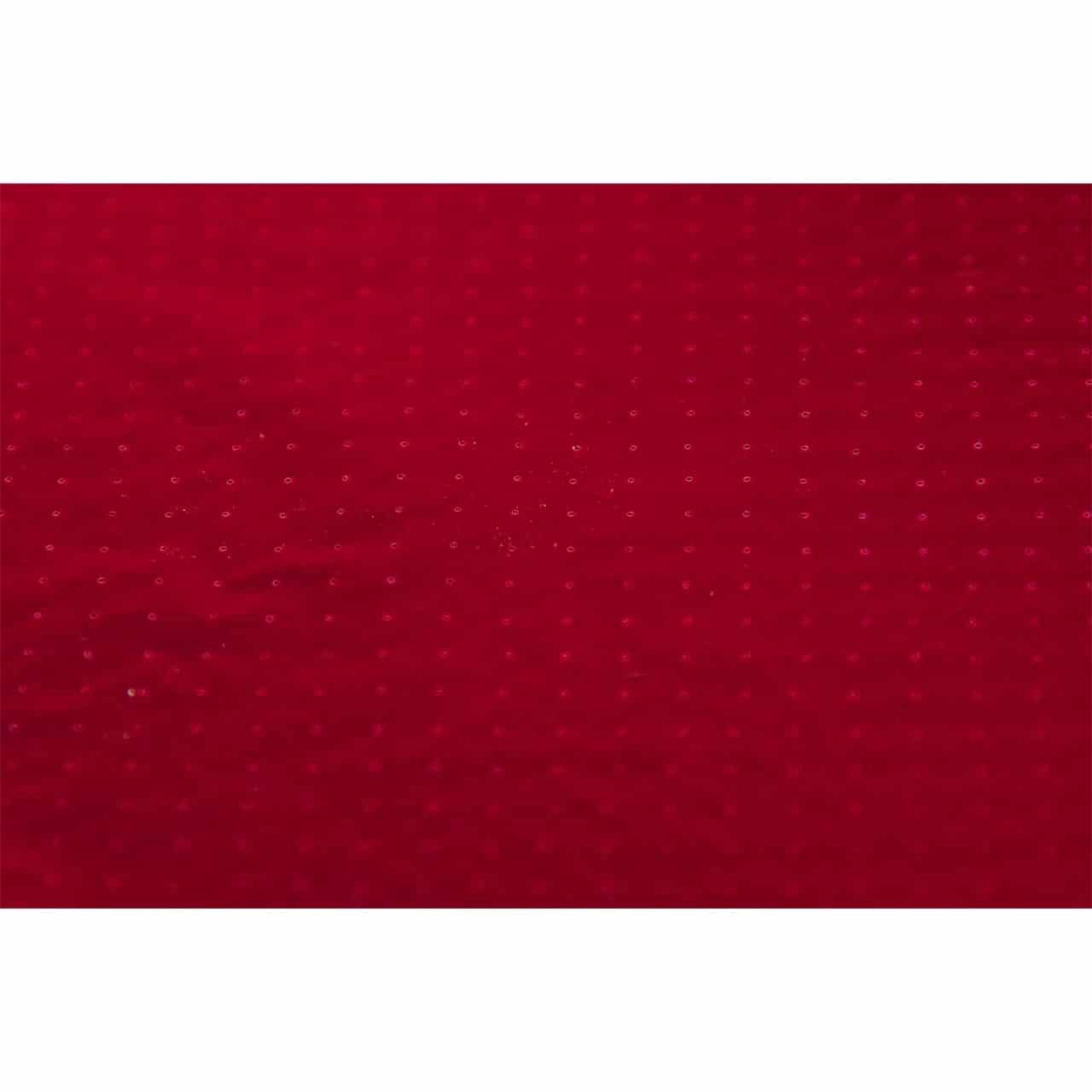

A perforated release film can be used between the peel ply and the breather/bleeder in vacuum bagging to limit the amount of resin removed from the laminate.

  • 1m wide
  • 35um thick
  • Type A
  • 120 deg C

kit contains

  •  3k carbon twill 200g 500mm x 150mm
  • 600ml west systems 105/205 epoxy resin
  • 3m -25mm heat shrink tape
  • 3 – 50mm paint brushes
  • 5 – stirring sticks
  • 3 – disposable cups
  • 3- pairs of nitrile gloves
  • 3m – carbon tow
  • sandpaper
